Model |

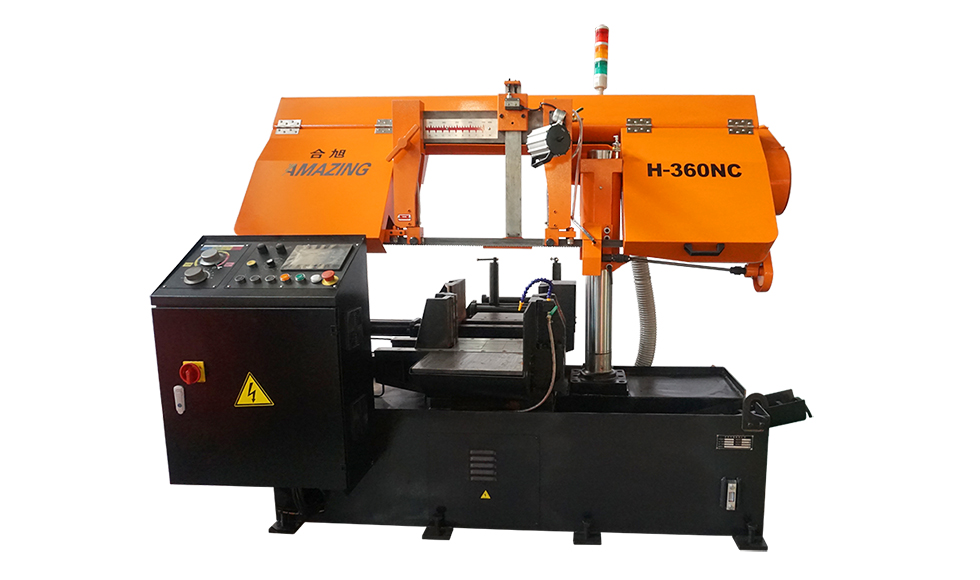

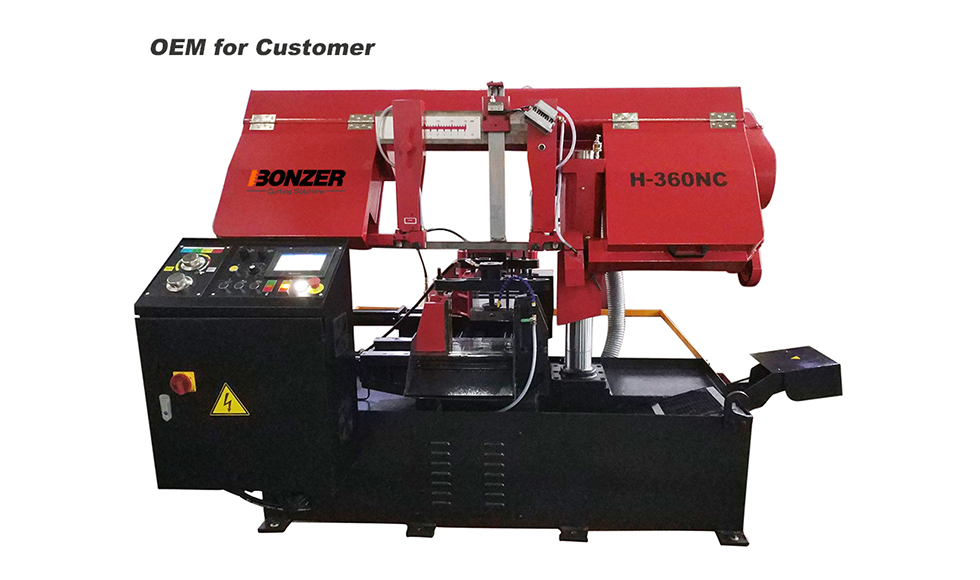

H-360NC |
|
Capacity |
● |
360 mm (14") |
|
■ |
360 x 360 mm (14"W x 14"H) |
|
Bundle Cutting |
Width |
180 to 280 mm (7" to 11") |
|
Height |
50 to 160 mm (2" to 6") |
|
Blade Speed |
15 to 80 m/min. (INVERTER) |
|
Motor |
Blade Drive |
4 kw (5HP) |
|
Hyd. Pump |
1.5 kw (2HP) |
|
Coolant Pump |
0.1 kw (1/8HP) |
|
Blade Size |
4420 x 34 x 1.1 mm (174" x 1.3" x 0.042") |
|
Blade Tension |
Hydraulic |
|
Index Length |
400 mm (16") 400 mm x 9 times (16" x 9") |
|
Machine Weight |
2000 kg (4410 lb) |
|
Floor Space (L x W) |
2500 x 2100 mm (98" x 87") |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
STANDARD FEATURES
-
Shuttle type automatic feed.
-

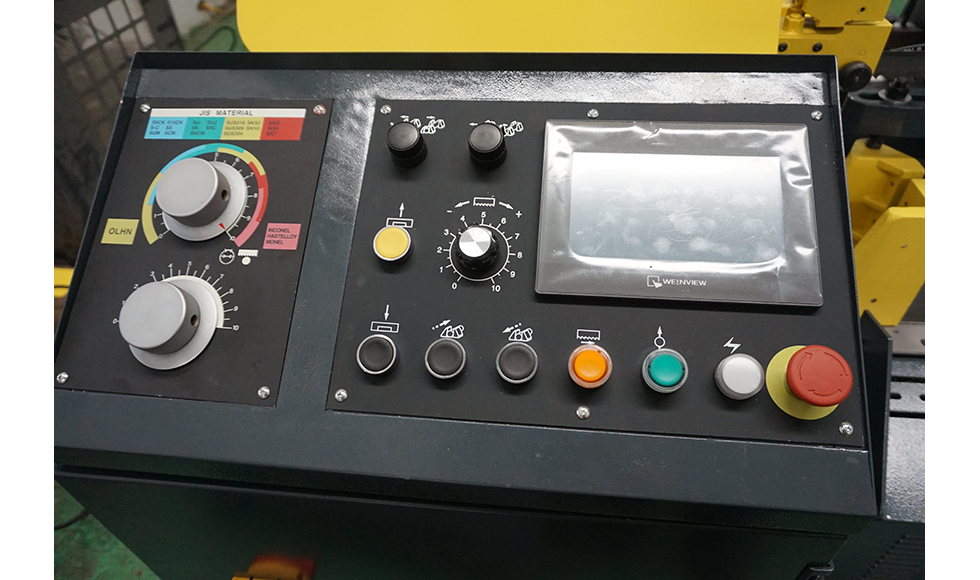

User friendly NC touch screen control with selfdiagnostic system.
-
P.L.C. control for all electric and hydraulic function.
-

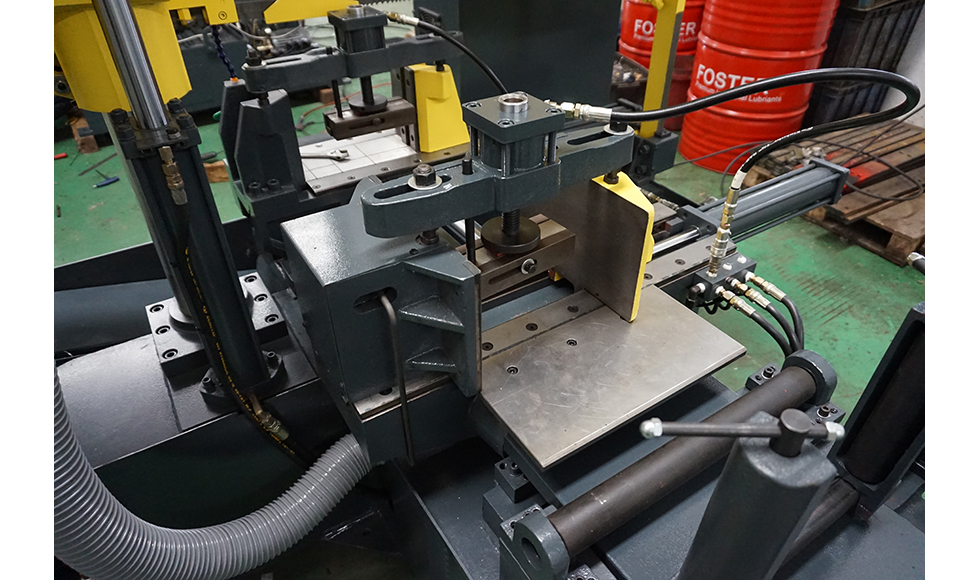

Hydraulically controlled dual vise full stroke clamping system.
-
Floating shuttle vise system.
-
Split front vise.
-
Infinitely variable speed control by inverter.
-
Blade speed tachometer.
-
Hydraulic blade tensioning.
-
Roller bearing with carbide blade guide system.
-
Automatic work height control by fast approach bar sensor.
-
Preset cut counter with shut off.
-
Out of stock shut off.
-

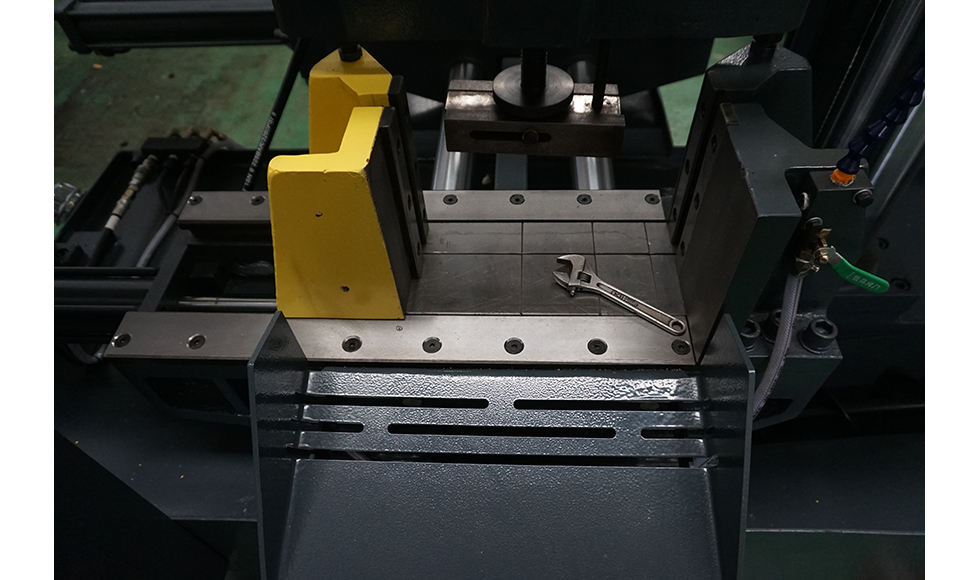

Nesting fixture for bundle cutting.
-
Power driven blade cleaning brush.
-
Idler wheel motion detector with blade stalling and breakage shut off.
-
Flushing hose for machine cleaning.
-
LED Work light.
-
One M42 bi-metal saw blade.
-
One set of tools and tool box.
OPTIONAL EQUIPMENT
1. Automatic chip conveyor.
2. Variable vise pressure.
Roller stock table 2M long.
