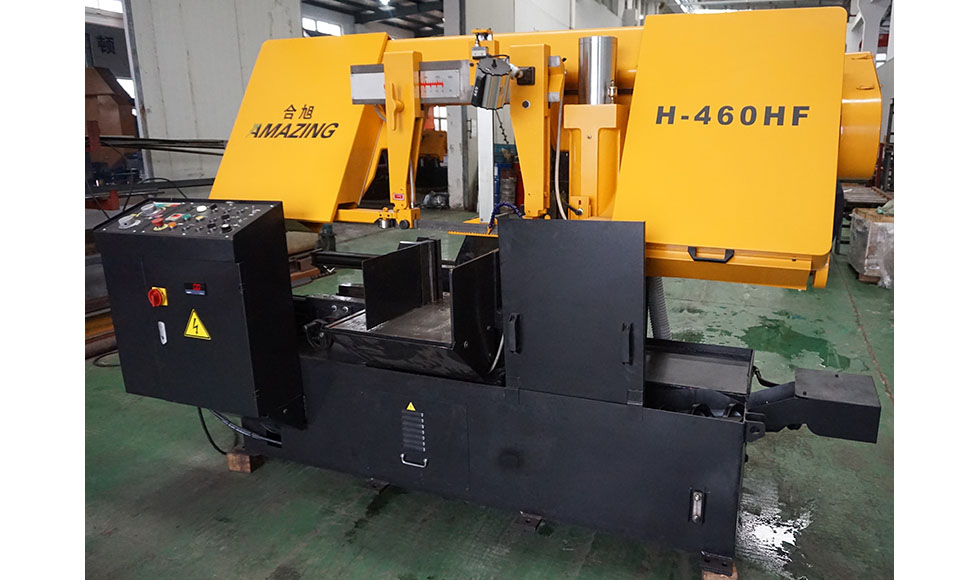

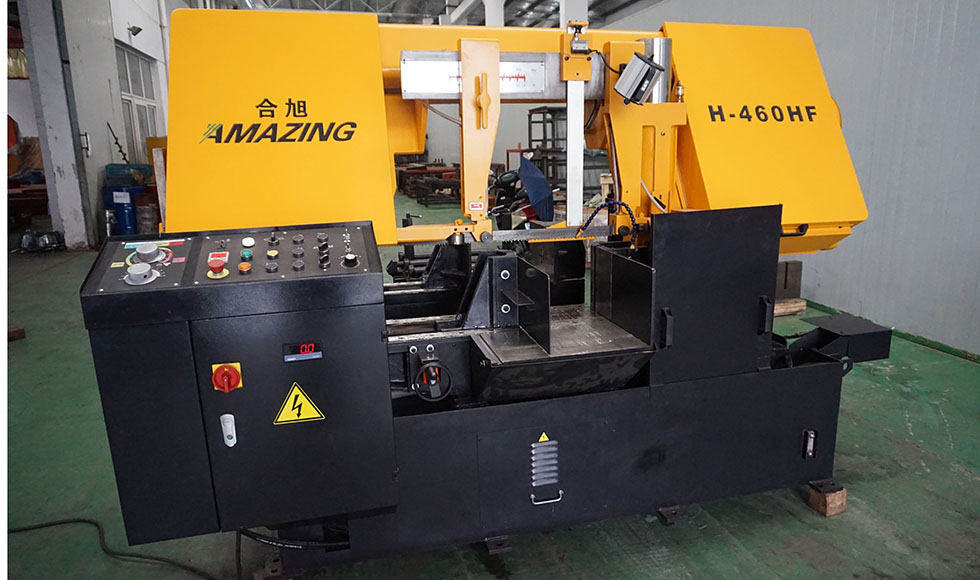

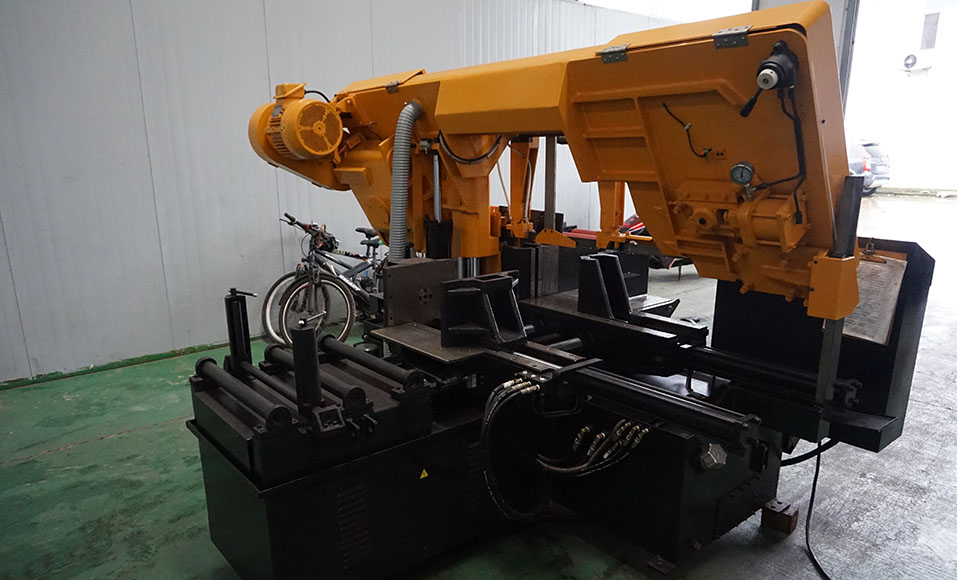

全自動帶鋸機 H-460NC全自動帶鋸機
NC Autormatic Column Type Band saw H-460HFNC
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
| Model | H-460HFNC | |
| Capacity | ● | 460 mm |
| ■ | 500 x 460 mm | |
| Bundle Cutting | Width | 195 to 310 mm |
| Height | 120 to 230 mm | |
| Blade Speed | 20 to 90 m/min (INVERTER) | |
| Motor | Blade Drive | 5.5 kW |
| Hyd. Pump | 1.5 kW | |
| Coolant Pump | 0.2 kW | |
| Blade Size | 5450 x 41 x 1.3 mm | |
| Blade Tension | Hydraulic | |
| Index Length |
500 mm (20") 500 mm x 9 times (20" x 9") |
|
| Machine Weight | 2700 kg (5950 lb) | |
| Floor Space (L x W) | 2820 x 2190 mm (111" x 86") | |
